 Intel Mini PC NUC Kit - Core i3-5010U Processor


Product Overview

The 4-inch square Intel NUC NUC5i3RYH takes the powerful capabilities of a desktop system and packages it into a computer that fits in the palm of your hand. This fully scalable system comes with the latest 5th generation Intel Core i3 processor and integrated Intel HD Graphics with 4K display support. Whether you want a digital jukebox, home hub, or light gaming PC, the Intel NUC NUC5i3RYH gives you the power to play, create, entertain, and inspire. The system includes consumer infrared sensor so you can use a remote control for your NUC right from your couch, 7.1 surround sound, Mini HDMI* video interface, and room for a 2.5" HDD or an M.2 SSD so you can store full-length movies or quickly serve up music files. With Intel WiDi1 you can connect your monitor without any additional cables and Bluetooth* lets you place wireless speakers where you wantall the features you want in a space-saving, clutter-free design. A replaceable lid gives you plenty of options to create the Intel NUC you wantwith amazing style and features. Theres also a high-speed USB 3.0 charging port that lets you easily charge your tablet or smartphone quickly. And for peace of mind youll get embedded security that helps keep threats out, user identities and credentials safe, and your data protected.

Introducing the Intel NUC

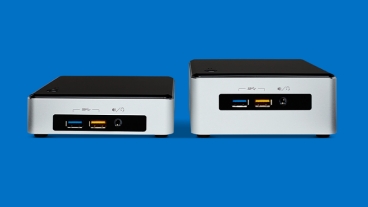

   side by side nucs

Small Package, Big Potential

The Intel NUC is an energy-efficient, fully functioning PC that not only fits your performance needsit fits in the palm of your hand.

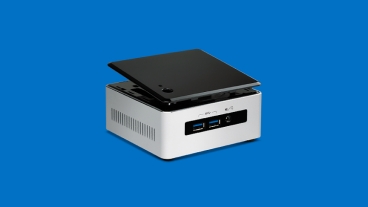

nuc kit

The Kit

The Intel NUC kit is available from various retailers and includes a highly customizable four-by-four-inch board that is ready to accept the memory, hard drive, and operating system you choose to install.

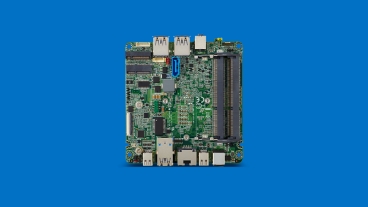

nuc boards

The Board

The four-by-four-inch Intel NUC board comes complete with a soldered-on processor. The board can be purchased independently of the kit, giving you the flexibility to choose the chassis that best suits your needs.

Explore the Intel NUC



   browse

Browse the Product Line

Take a closer look at the various Intel NUC models, their specifications, and unique capabilities and features.





   uses

What Can You Use It For?

From home theater systems, to digital signs, find out how others are using the space-saving Intel NUC in their home or business.

compare

Compare and Contrast

View the various Intel NUC configurations side-by-side to find out which model best fits your specific needs.

Specifications

Essentials

Status Launched
Launch Date Q1'15
Expected Discontinuance See Roadmap
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
Embedded Options Available No
Lithography 14 nm
TDP 15 W
DC Input Voltage Supported 12-19 VDC


Board Chipset Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)
Processor Included Intel Core i3-5010U Processor (3M Cache, 2.10 GHz)
Warranty Period 3 yrs

Memory Specifications

Max Memory Size (dependent on memory type) 16 GB
Memory Types DDR3L-1333/1600 1.35V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
Max # of DIMMs 2
ECC Memory Supported   No

Graphics Specifications

Integrated Graphics   Yes
Graphics Output Mini-DP 1.2, Mini-HDMI 1.4a
Intel Clear Video Technology Yes
# of Displays Supported   3

Expansion Options

PCI Express Revision Gen2
PCI Express Configurations   M.2 slot with PCIe X4 lanes

I/O Specifications

USB Revision 2.0 3.0
# of USB Ports 6
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (mHDMI mDP); L+R+mic (F)
Integrated LAN 10/100/1000
Integrated Wifi Intel Wireless-AC 7265 + BT 4.0
Integrated Bluetooth Yes

Package Specifications

Low Halogen Options Available See MDDS

Advanced Technologies

Intel Virtualization Technology for Directed I/O (VT-d)   Yes
Intel vPro Technology   No
TPM No
Intel HD Audio Technology Yes
Intel Rapid Storage Technology Yes
Intel Virtualization Technology (VT-x)   Yes

Intel Data Protection Technology

Intel AES New Instructions Yes
